750W,1000W low power servo motor, flange size: 80*80mm SME60 series servo motor

Product Categories

CHANGZHOU DECARBON MOTOR CO., LTD

Contact Now

Place of Origin : CHANGZHOU

Brand Name : DK

Certification : CE, ROHS, CCC.

Model Number : SME60 Series

MOQ : 5PCS

Price : CONFIRMED

Packaging Details : SUIT EXPORT

Delivery Time : CONFIRMED

Payment Terms : T/T inadvance

Supply Ability : 500pcs/month

Contact Now

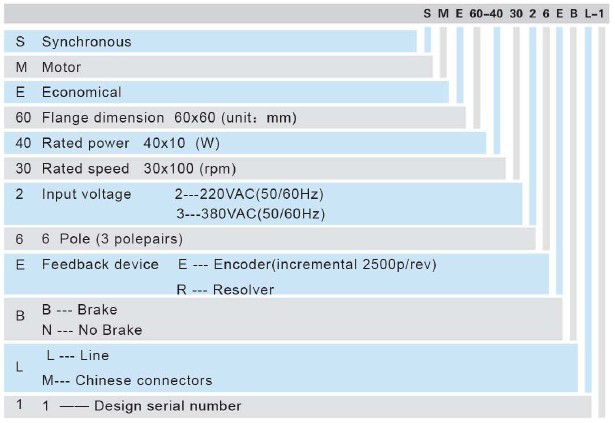

SME Servo motor named principle

SME60 Technical Information

Technical Data

Motor Type		SME60—203026xxL SME60—203026xxM	SME60—403026xxL SME60—403026xxM
Rated power Pn (W)		200	400
Rated torque Tn (Nm)		0.64	1.27
Rated speed nn(rpm)		3000	3000
Rated current In(A)		1.6	3.1
DC Link Voltage UDC(V)		300	300
Maximum torque Tm(Nm)		1.92	3.81
Maximum current Im(A)		4.8	9.3
Standstill torque Ts(Nm)		0.7	1.4
Standstill current Is(A)		1.76	3.41
Voltage constant Ke (V/krpm)		29	29
Torque constant Kt (Nm/A)		0.48	0.48
Resistance line-line RL (Ω)		10.4	5.8
Inductance line-line LL (m H)		25.4	15
Electrical time constant τe (ms)		2.44	2.59
Mechanical time constant τm (ms)		2.93	1.93
Rotor moment of inertia Jm (kgcm²)		0.375	0.443
Pole number		6	6
Max. voltage rising du/dt (kV/μs)		8	8
Insulation class		F	F
Max. radial force Fr (N)		180	180
Max. axial force Fa (N)		90	90
Weight (Kg)		1.3	1.6
Feedback device		2500p/rev incremental encoder or Resolver (sin--cos)
Cooling method		Totally enclosed non-ventilated
Protection level		IP65,shaft sealing IP54
Environmental conditions	Temperature	-20℃～40℃
	Humidity	Below 90%RH(No dewing)
	Environment	Far away active gas, combustible gas, oil drop, ash.
	Installation altitude	Up to 1000m:rated power Above 1000m:1.5% power Decreasing per 100m,max.4000m
Rating conditions	Mounting	Black Aluminum flange 255×255×6mm
	Temperature	60K housing temperature rising at 40℃ ambient
